DIY $7.50 target stand

4004 Views 17 Replies 15 Participants Last post by SordidSlayer, Jan 31, 2012

perimedik

Discussion Starter · Sep 21, 2011

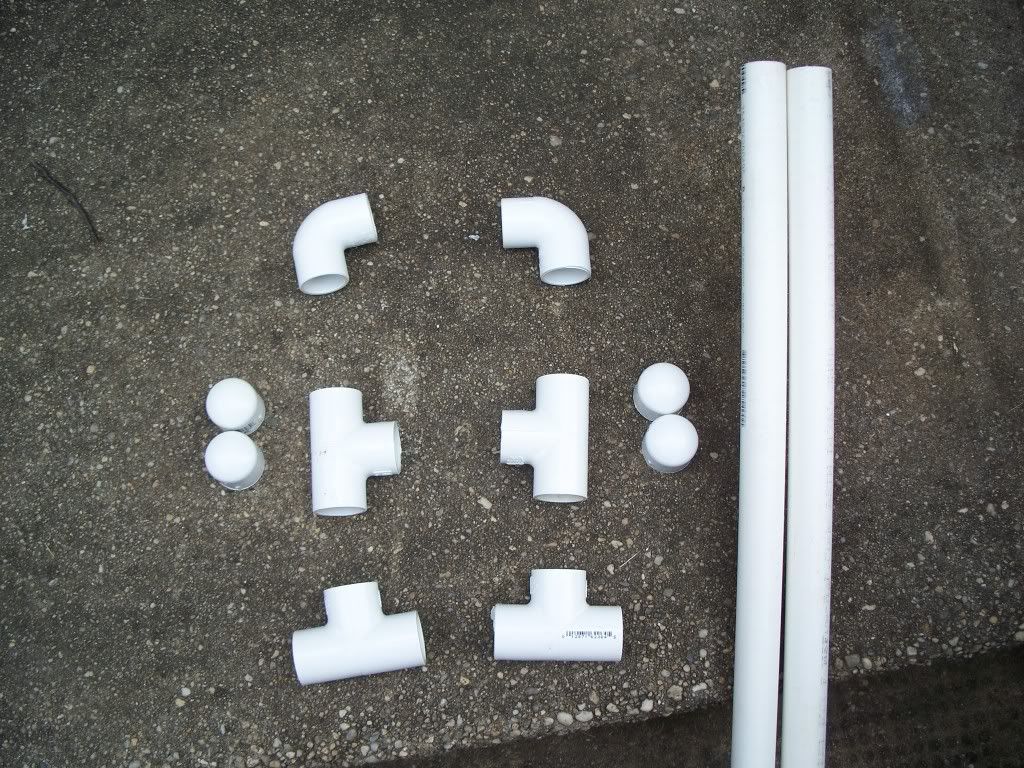

Made one today from Home Depot run.

2 - 10' x 3/4" PVC pipe from
4 - 3/4" end caps
4 - 90 degree T connectors
2 - 90 degree elbows

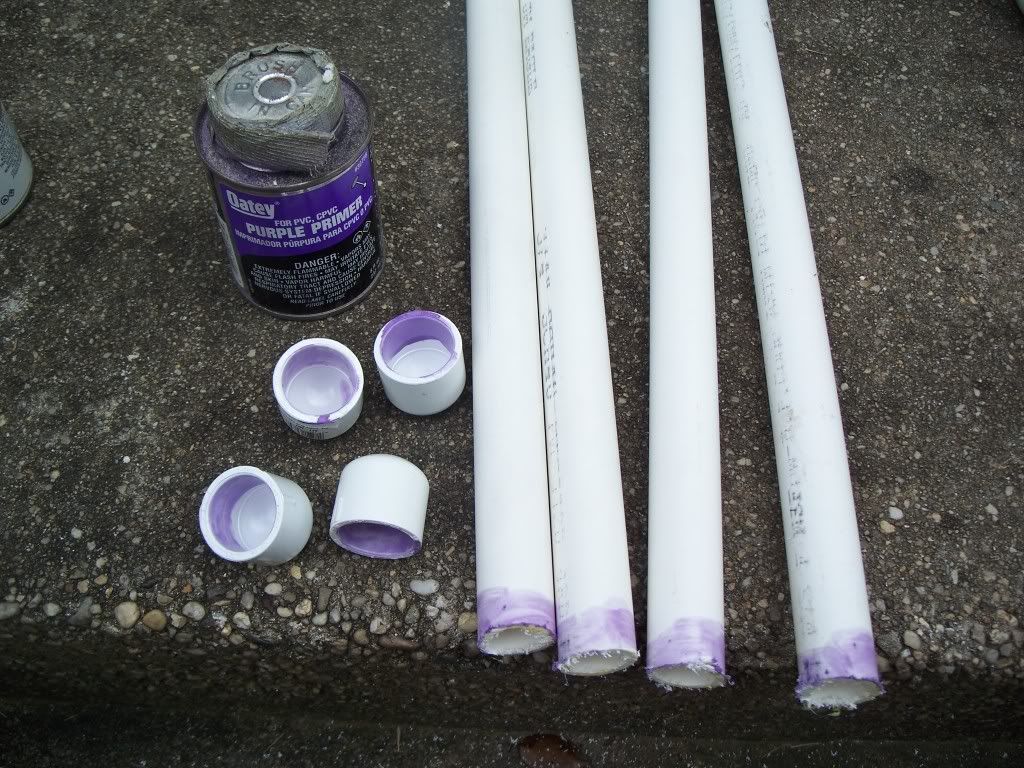

PVC primer and cement (I had so It didn't factor that into cost)

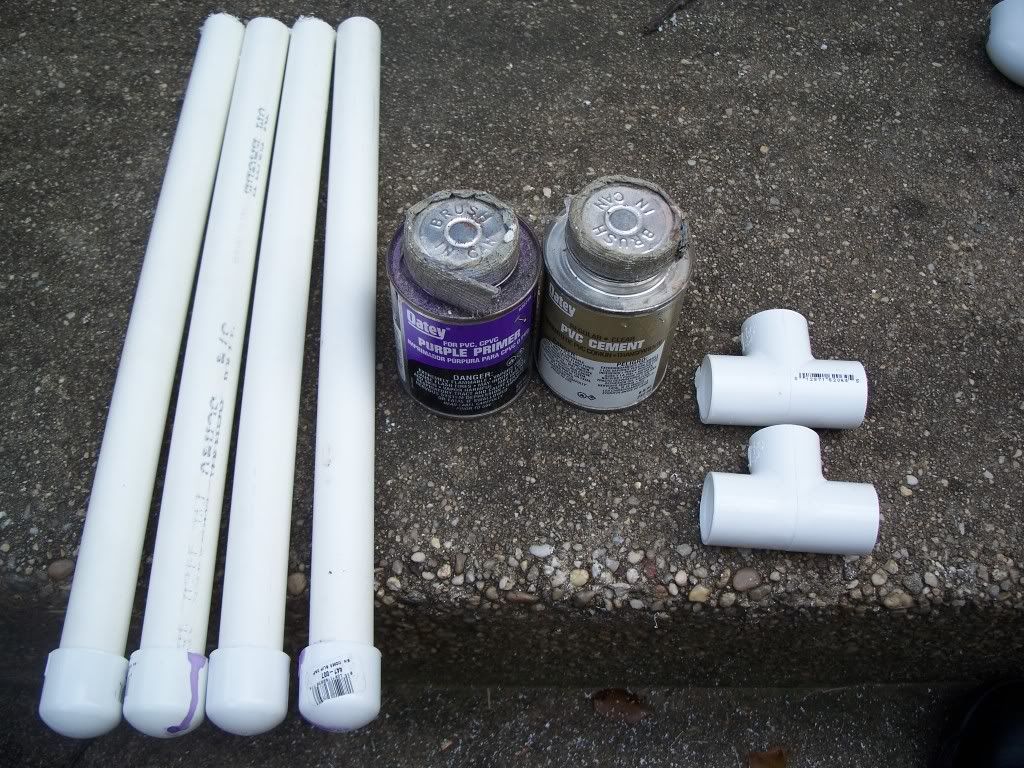

cut pieces at desired length and cap 4 ends for the feet

I cut them to 16"

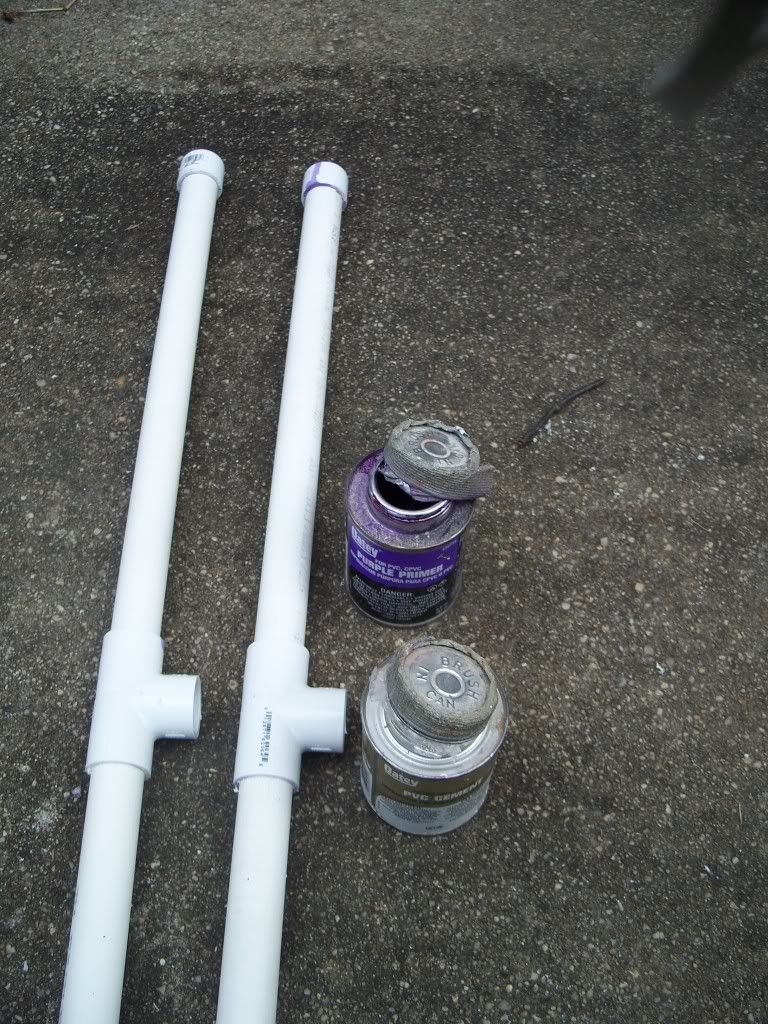

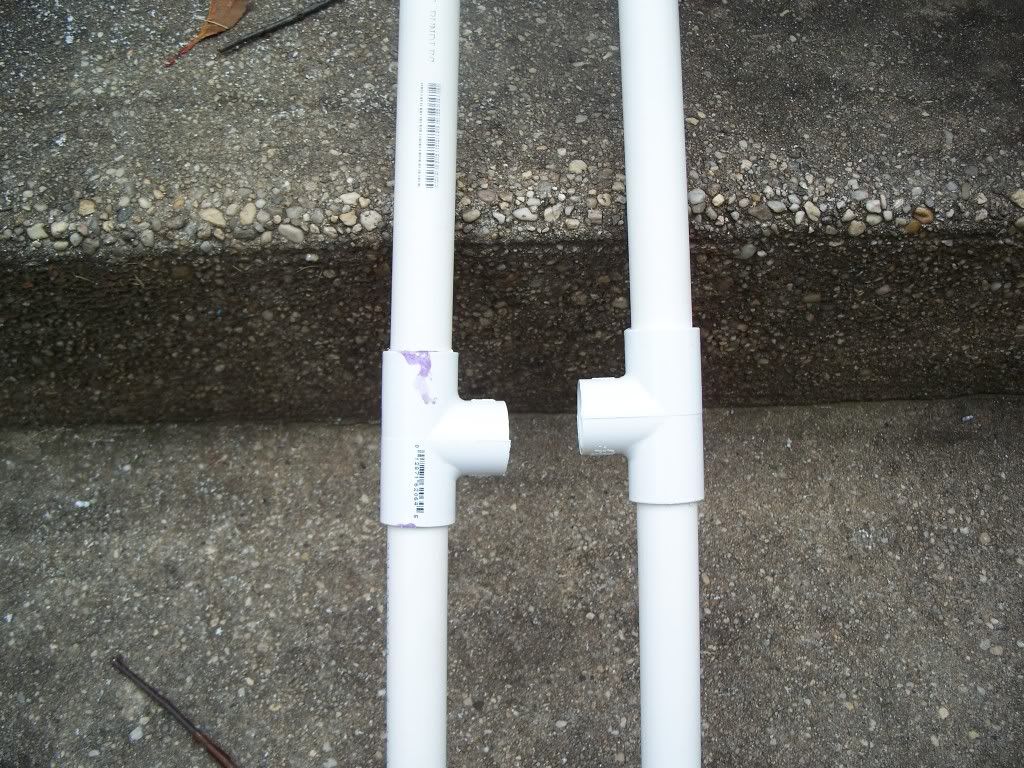

inset uncapped ends into T connection (cement these as well)

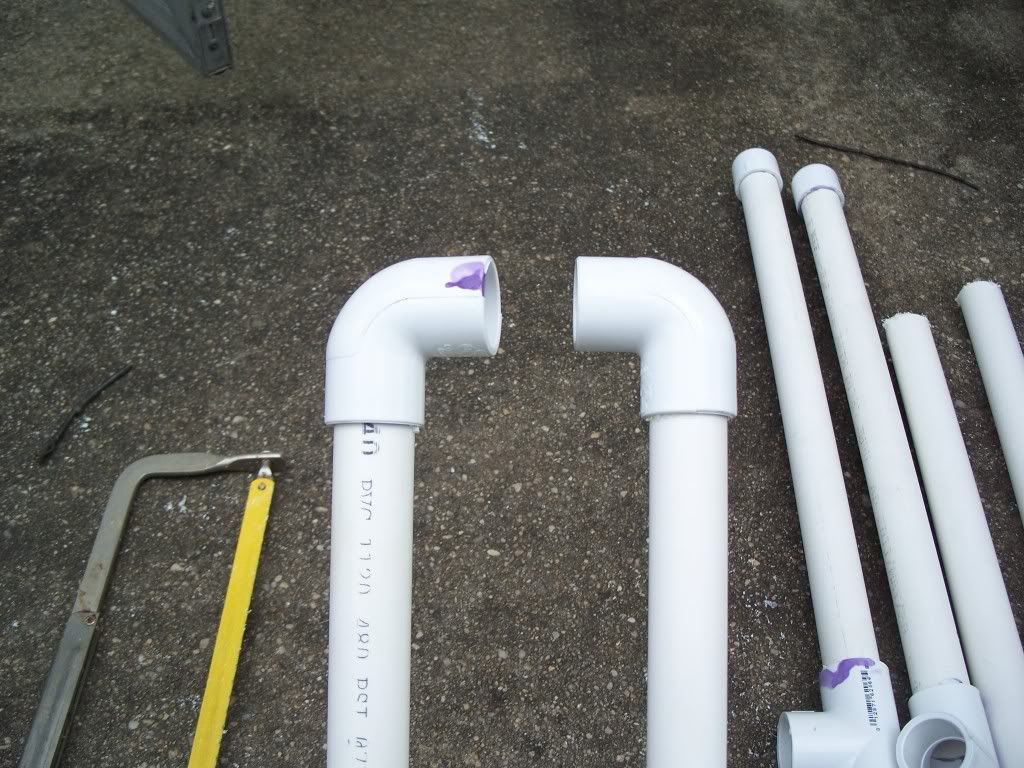

cut 4 pieces to desired length and cap 2 of them with a 90 degree elbow

insert the remaining 2 pieces into the T connectors
you'l now have 6 pieces all together

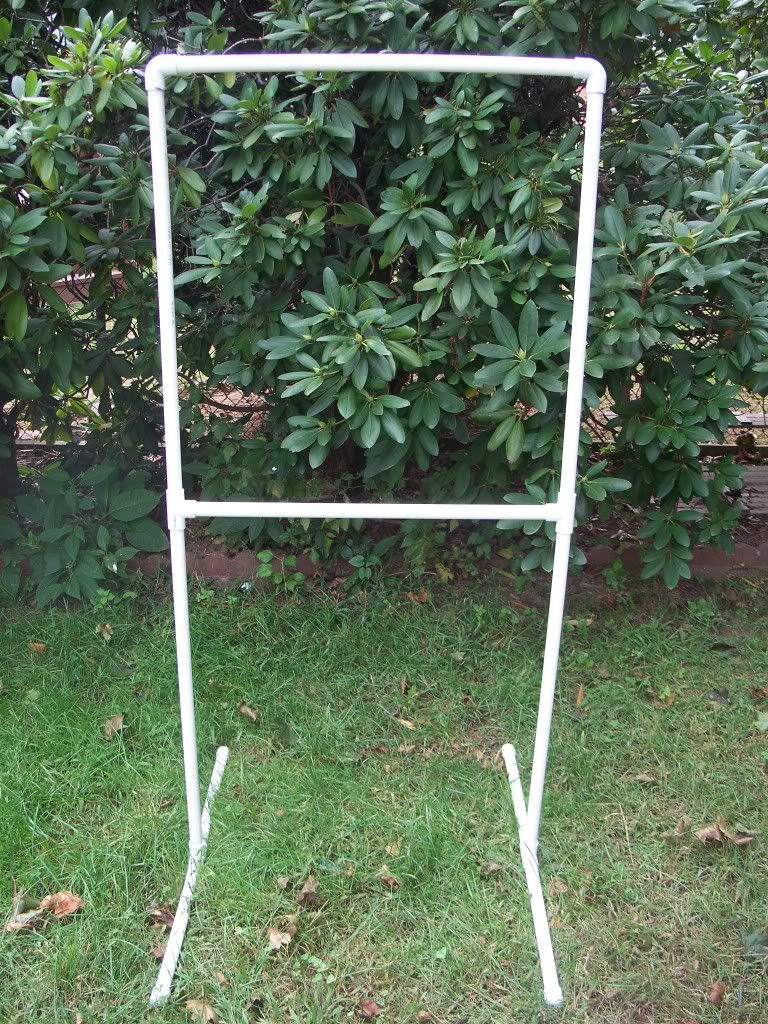

assembled

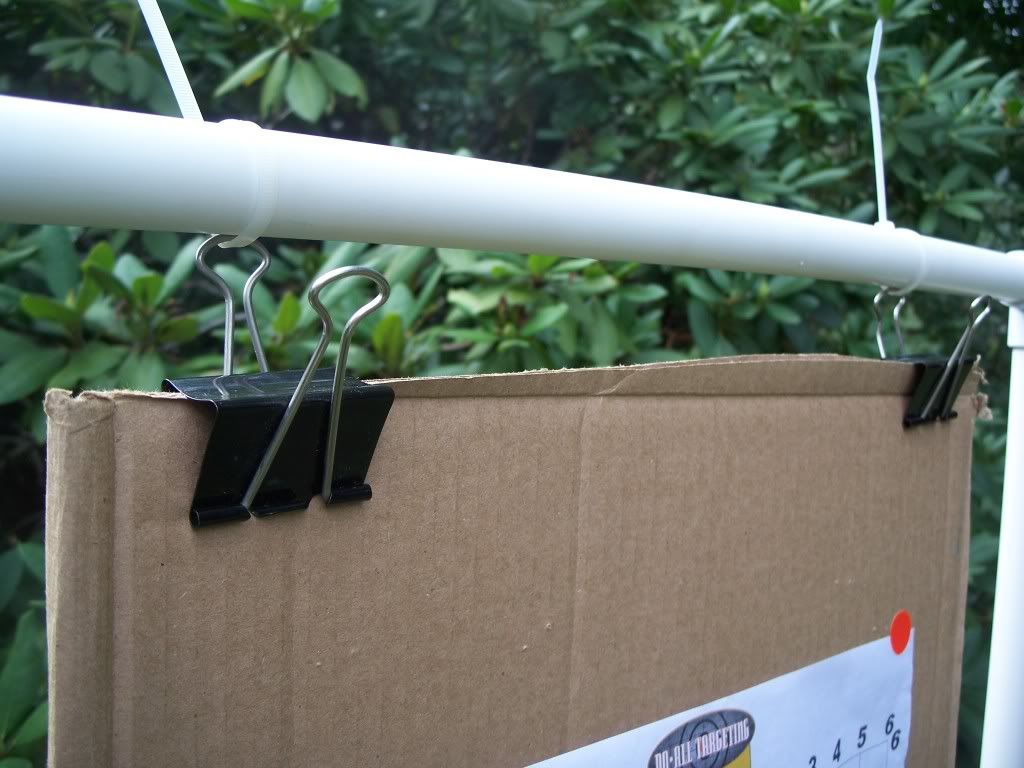

some zip ties and clips

range ready

See less See more

Save

1 - 18 of 18 Posts

CaptainMitchell

· #2 · Sep 21, 2011

Nicely done. We use this stuff to make agility equipment

Save

WWCDLINY

· #3 · Sep 21, 2011

Capt M - where do you do agility? Got my Lucy into it. Long Island Agility, Huntington, most Sunday's.

Save

As long as you sprang for endcaps for the feet, why not fill the feet with sand or lead shot and glue or jam a bit of foam into the middle of the tee in order to provide some extra ballast against windage?

Save

The Architect

· #5 · Sep 21, 2011

Nicely done

Check out our new <a href='https://www.longislandfirearms.com/forum/raffles' class='bbc_url' title=''>raffles area</a>, <a href='https://www.longislandfirearms.com/forum/classifieds' class='bbc_url' title=''>buy/sell/trade area</a>, and <a href='http://www.lifstore.com' class='bbc_url' title='External link' rel='nofollow external'>official store</a> today!Remember that disputes on LIF are accessible to everyone on the Internet. The way in which you conduct yourself on LIF reflects on LIF and on you. Personal attacks will never help you make a point; they hurt the community and deter users from helping create a good community. We understand frustrations surrounding the 'NYSAFE' law which took effect 'behind closed doors'. Rest assured LIF will be addressing this in the very near future.

Save

PGNHAWK

· #6 · Sep 21, 2011

one question, is a rhododendron an acceptable backstop for your range?

Save

psydaddy

· #7 · Sep 21, 2011

I once trimmed a rhododendron. So thick it would stop a truck!
Nice job. Anthony.

Dov

Save

CommackBoy

· #8 · Sep 21, 2011

Very nice job. I need to build a couple of freeport range. Was thinking of using 2x4s, but this looks like a better solution.

Save

perimedik

Discussion Starter · #9 · Sep 21, 2011

Captain Will said:
As long as you sprang for endcaps for the feet, why not fill the feet with sand or lead shot and glue or jam a bit of foam into the middle of the tee in order to provide some extra ballast against windage?

I though about that however, I wanted it to be as light as possible. A couple of tent stakes wil hold it down

PGNHAWK said:
one question, is a rhododendron an acceptable backstop for your range?

;D not yet but I am working on it...

See less See more

Save

Captain Will

· #10 · Sep 21, 2011

tent stakes sounds like a good plan.

Save

perimedik

Discussion Starter · #11 · Sep 21, 2011

Captain Will said:
tent stakes sounds like a good plan.

Yea, I'm gonna drill a few holes in the feet and steak it down. Was my plan. just trying to keep it light for transport.

Save

P.B.

· #12 · Jan 30, 2012

good idea

Save

sigequinox220

· #13 · Jan 30, 2012

well done, the tent stakes were a good idea. lugging around a 50lbs base filled with earth--as I have seen in many youtube vids--really counteracts the usefulness of the pvc design. at that point might as well make steel targets for instant feedback, or at least wood for extra structural integrity. Again, nicely done.

Save

HKFANBOY

· #14 · Jan 30, 2012

I was really worried for a minute, nope your ok. The pvc is pre ban. ;D

Save

PeepSight

· #15 · Jan 30, 2012

HKFANBOY said:
I was really worried for a minute, nope your ok. The pvc is pre ban. ;D

BUt do you have to be 21 years old to but the glue?

Save

minuteman1970

· #16 · Jan 30, 2012

nice work!

Save

vmtcmt

· #17 · Jan 30, 2012

I built these for IPSC/IPDA practice. (From another thread)
http://www.longislandfirearms.com/forum/m-1322918526.86532/

vmtcmt said:
Found the fittings I needed on Amazon of all places, <$5 ea., shipped. The rest came from my local friendly Ace Hardware.

Anywho, I wanted them to make target stands to use at Freeport. Just the right width for an IPSC/IDPA target. Light weight, two are broken down and fit in a medium size duffle bag, and in my trunk. I will eventually drill the center cross brace for tent spikes or gutter nails in case I need some additional stability. Said nails or spikes can be stored in one of the legs, or I can just fill them with rocks and/or dirt, and dump it when I'm done.

All tubing is 1.5" PVC. Each stand uses (2) 4-way T's:http://www.amazon.com/gp/product/B003U5NNVK, (4) shallow 90 deg elbows <$2 ea at Ace, and (1) 10' piece of tubing, $7 at Ace. Total was a bit over $20 each. All pieces are 13", except for the center cross brace, which is a bit longer because it seats deeper in the fitting than the standard plumbing pieces, I guess. Total scrap was less than 1". The uprights are 8', 1"x2" furring strips, cut in half. About $1 ea.

Save

SordidSlayer

· #18 · Jan 31, 2012

Very cool ! Think I'm going to check the garage for lose pvc parts.

Save
